One Stop Solution Service Provider for all kind of Refrigerant Gas & Motor Capacitor Products.

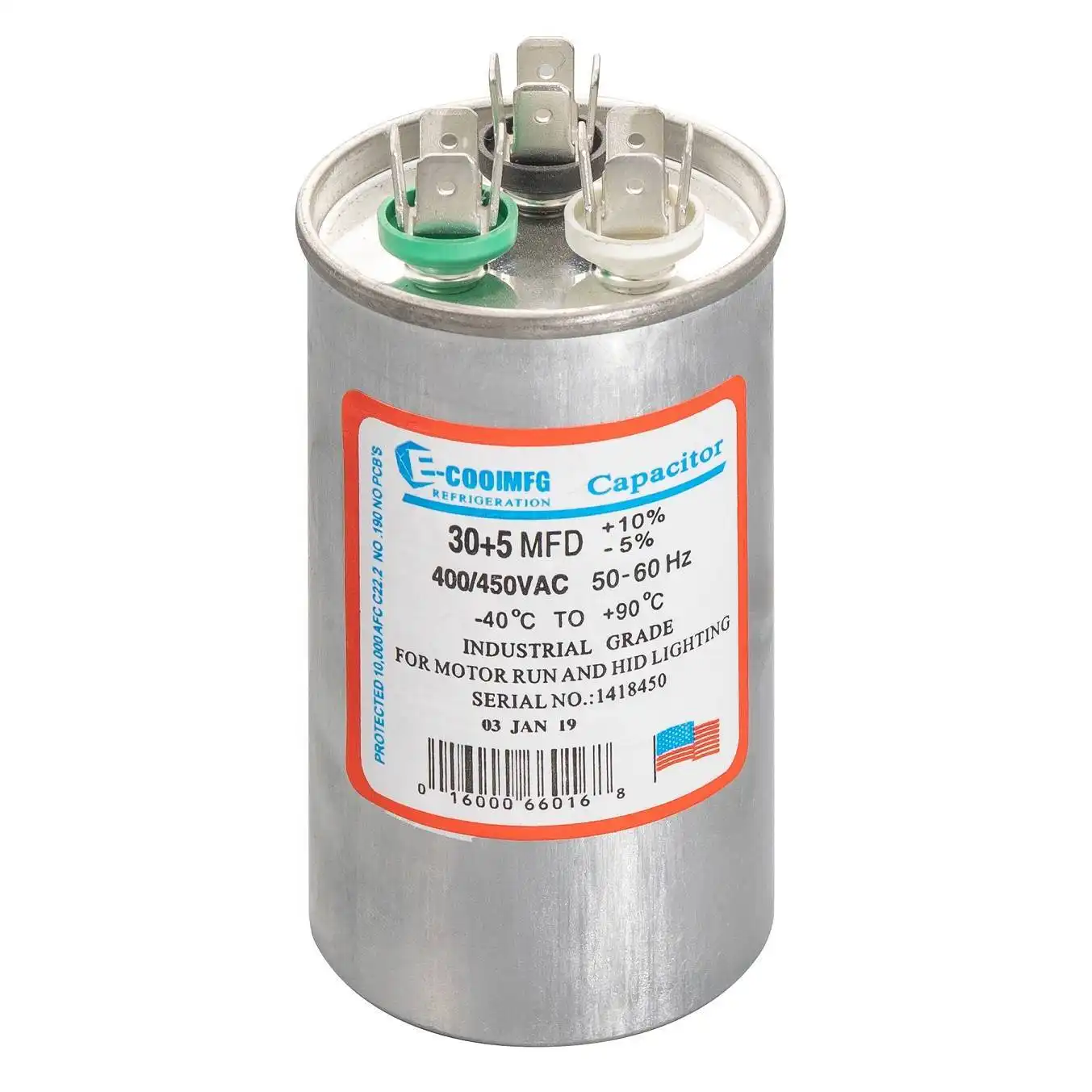

Air Conditioner Motor Run Capacitor Cbb65
QUICK DETAILS
PRODUCT BRIEF INTRODUCTION
Place of Origin | China |
Brand Name | Arkool Ecool OEM |
Model Number | CBB65 |
Type | Polypropylene film capacitor |
Application | Air conditioner |
Rated Voltage | 250~500 VAC |
Capacitance | 1~120uF |
| Capacitance Tolerance | ±5% |
| Dissipation Factor | Tgδ≤0.002（100HZ 20℃） |
Operating Temperature | 40/85/21 |
Shell | Aluminum |
Protection Class | S0~ S2 |
Certificates | ISO/CE/UL/CQC/TUV/RoHS |
| Implemented Standard | GB/T3667.1, UL810 , EN60252-1 |
| Test Voltage | T-T :1.75Un t/2s ; T-C : 2000VAC t /10s |
| Safety Approvavals | UL , VDE ,CQC ,TUV |
Supply Ability | 10000 Piece/Pieces per Day |
capacitor air conditioner ac dual capacitor cbb65
The company's CBB65 series air conditioner compressor capacitor, quality reliable, large inventory, complete model. Due to the introduction of foreign advanced equipment and technology, product stability is excellent, impact resistance. In addition products used in the Nordic material of the metal film, to ensure that the capacity of the capacitor overload, loss of small, high insulation resistance. Through the process of the production process of strict control to make the product of the rated service life long, excellent self-healing performance. Built in filling material is a safe and reliable filling of wax. Our CBB65 series air conditioning capacitor built-in explosion-proof block and shell aluminum shell seal, so as to achieve the best effect of explosion-proof. CBB65 series air conditioning capacitor is widely used, used in refrigerators, air conditioners and so on.
CBB61: Celing fan capacitor
CBB65: Air condition capacitor
CBB60: Water pump capacitor
PRODUCT DESCRIPTION
WHY CHOOSE US
12-1501 Yangguangcheng, Lvting Road, Yuhang District, Hangzhou, Zhejiang Province, China
