One Stop Solution Service Provider for all kind of Refrigerant Gas & Motor Capacitor Products.

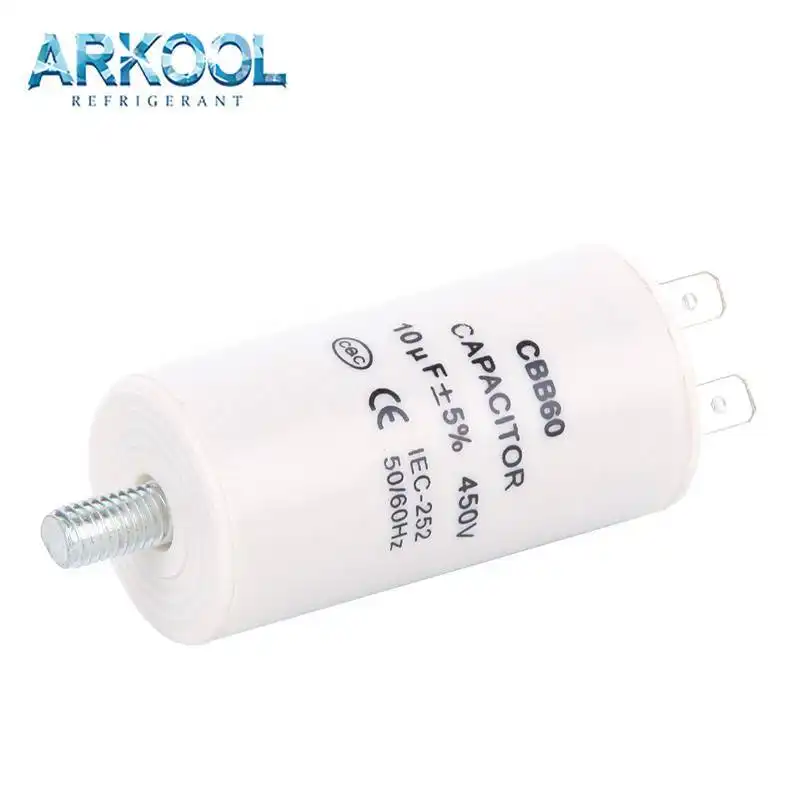

Motor Run Capacitor Cbb60 From China Manufacturer
QUICK DETAILS
Place of origin | China |
Brand Name | ARKOOL ECOOL OEM |
Model Number | CBB60 |
Type | Polypropylene film capacitor |
Application | AC Motor, water pump, washing machine |
Rated Voltage | 150~500VAC |
| Capacitance | 1-120uf |
Capacitance Tolerance | ±5% |
| Dissipation Factor | Tgδ≤0.002（100HZ 20℃） |
Operating Temperature | 40/85/21 |
Color of Capacitor | Black or white case capacitor |
Safety Protection Class | S0-S2 |
Implemented Standard | GB/T3667 UL810 EN60252 |
Material of Case | ABS plastic PBT plastic |
Terminal | Pin, Wires, Cable |
Test Voltage | T-T :1.75Un t/2s ; T-C : 2000VAC t/10s |
Safety Approvals | UL ,VDE ,CQC,TUV |
Supply Ability | 10000 Piece/Pieces per Day |
Packaging & Delivery | |
Packaging details | CBB60 AC motor run capacitor export carton |
Port | Ningbo or Shanghai |
Lead time | 7~10days |
PRODUCT BRIEF INTRODUCTION
CBB60 air compressor capacitor AC motor running capacitor
THE PRODUTS ARE MADE OF ELECTRICAL CLASS POLYPROPYLENE FILM, ZINC-ALUMINUM METALLIZED ELECTRODE, HIGH-QUALITY ENGINEERING PASTIC BOX, AND ENVELOPED WITH EPOXY RESIN, LED BY STANDARD QUICK-CONNECT TERMINALS TO CONNECT FAST.
Payment terms: T/T, L/C
Trade terms: FOB, CNF, CIF, EXW
NOMINAL CAPACITANCE,RATED VOLTAGE AND CASE SIZE TABLE
CBB60 capacitor for water pump and washing machine running capacitor specifications
