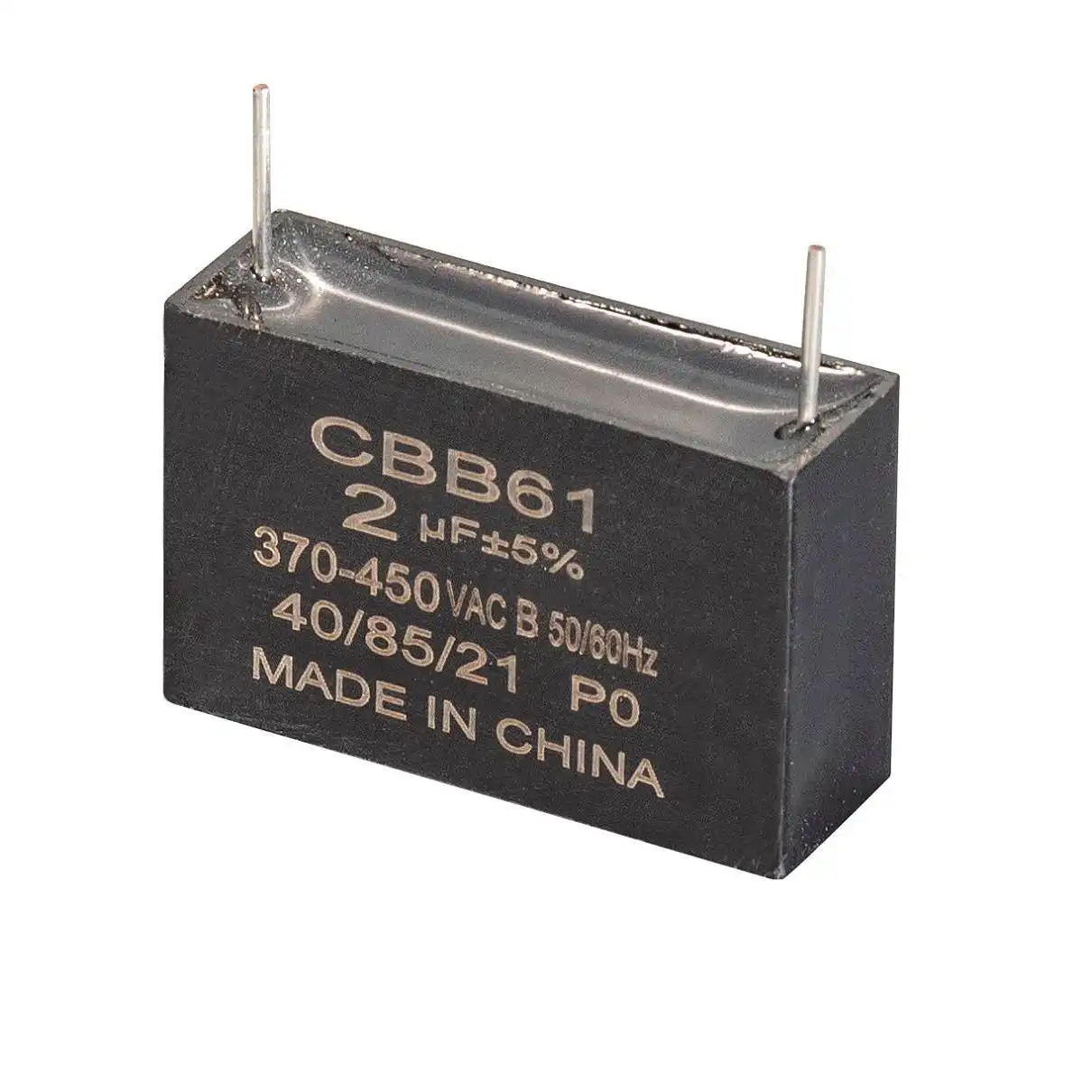

Motor Run Capacitor Cbb61 For Fan Motor
QUICK DETAILS
Place of origin | China |
Brand name | ARKOOL, ECOOL ,OEM |
Model number | CBB61 |
Type | Polyester film capacitor |
Application | For fan motor |
Rated voltage | 150~500VAC |
| Capacitance | 1~25μF |
Capacitance Tolerance | ±5% |
| Dissipation Factor | Tgδ≤0.002（100HZ 20℃） |
Operating Temperature | --40~85℃ |
Color | Black, red, blue |
Protection Class | S0~S2 |
Implemented Standard | GB/T3667.1 , UL810, EN60252-1 |
Test voltage | T-T :1.75Un t/2s ; T-C :2000VAC t /10s |
Safety approvals | UL, VDE, CQC, TUV |
Supply Ability | |
Supply ability | 20000 Piece/Pieces per Day |
Packaging & Delivery | |
Packaging details | All goods must be packed in strong tray and thickening the cartons, as for long distance ocean and adapt to climate change, and have good moisture proof seismic capacity, due to poor packing of the goods losses shall be borne by the seller in full. |
Port | Ningbo or Shanghai |
Lead time | 15 days |
PRODUCT BRIEF INTRODUCTION
Motor run capacitor CBB61 capacitor for fan
THE PRODUTS ARE MADE OF ELECTRICAL CLASS POLYPROPYLENE FILM,ZINC-ALUMINUM METALLIZED ELECTRODE,HIGH-QUALITY ENGINEERING PASTIC BOX,AND ENVELOPED WITH EPOXY RESIN,LED BY STANDARD QUICK-CONNECT TERMINALS TO CONNECT FAST.
Payment terms: T/T, L/C
Trade terms: FOB, CNF, CIF, EXW
PRODUCT DESCRIPTION
Overall And Installation Dimension
NOMINAL CAPACITANCE,RATED VOLTAGE AND CASE SIZE TABLE
Rated cap. | 250VAC | 300VAC | 350VAC | 400VAC | 450VAC | 500VAC | 600VAC |
L*W*H | L*W*H | L*W*H | L*W*H | L*W*H | L*W*H | L*W*H | |
0.40uF | — | — | — | — | 31*9*17 | 31*9*19 | 32*11*21 |
0.50uF | — | — | — | — | 31*9*17 | 31*9*19 | 32*11*21 |
0.56uF | — | — | — | 31*9*17 | 31*9*19 | 32*10*19.5 | 32*11*21 |
0.60uF | — | — | — | 31*9*17 | 32*10*19.5 | 32*11*21 | 36*11*22 |
0.80uF | — | — | 31*9*19 | 32*10*19.5 | 32*11*21 | 36*10.5*20 | 36*12*22 |
1.0uF | — | 31*9*7 | 32*10*19.5 | 32*11*21 | 36*10.5*20 | 36*11*22 | 36*12*22 |
1.2uF | 31*9*17 | 32*10*19.5 | 32*11*21 | 36*11*22 | 36*12*22 | 36*12.5*24 | 36*15*25 |
1.5uF | 31*9*19 | 32*11*21 | 32*11*21 | 36*12.5*24 | 36*12.5*24 | 36*15*25 | 36*16*28 |
1.8uF | 31*10*19 | 36*10.5*20 | 36*12*22 | 37*13.5*24 | 36*15*25 | 36*16*28 | 38*18.5*29 |
2.0uF | 31*10*19 | 36*11*22 | 36*12.5*24 | 37*13.5*24 | 36*15*25 | 38*17*28 | 38*19.5*31 |
2.2uF | 32*11*21 | 36*11*22 | 36*12.5*24 | 37*13.5*24 | 36*16*28 | 38*18.5*29 | 38*19.5*31 |
2.5uF | 32*11*21 | 36*12*22 | 36*15*25 | 36*16*28 | 38*17*28 | 38*19.5*31 | 48*19*28 |
3.0uF | 36*12*22 | 36*12.5*24 | 36*16*28 | 38*17*28 | 38*19.5*31 | 47*17*31 | 47*20*31 |
3.5uF | 36*12*22 | 36*15*25 | 38*17*28 | 38*18.5*29 | 47*17*28 | 47*20*31 | 47*23*32 |
4.0uF | 36*12.5*24 | 38*14.5*27 | 38*18.5*29 | 38*19.5*31 | 48*19*28 | 47*20*33 | 47*23*35 |
4.5uF | 36*12.5*24 | 36*16*28 | 38*19.5*31 | 48*17*28 | 47*20*31 | 47*23*35 | 47*24*37 |
5.0uF | 37*13.5*24 | 38*17*28 | 48*17*28 | 47*17*31 | 47*20*31 | 47*23*35 | 47*27*37 |
6.0uF | 38*16*27 | 38*18.5*29 | 38*19.5*31 | 47*20*31 | 47*23*35 | 47*27*37 | 58*26*38 |
6.5uF | 38*16*27 | 38*18.5*29 | 47*19*31 | 48*22*32 | 47*23*35 | 48*28*40 | 58*26*38 |
8.0uF | 48*17*28 | 48*19*28 | 47*23*32 | 47*23*35 | 47*27*37 | 58*28*38 | 58*30*40 |
10uF | 47*20*31 | 47*20*33 | 47*24*37 | 48*28*40 | 58*26*38 | 58*30*40 | 70*38*52 |
12uF | 48*19*28 | 47*23*35 | 48*28*40 | 58*26*38 | 58*28*40 | 58*32*43 | 70*38*52 |
